Engine
Engine Type: Liquid Cooled, 2-Stroke, Single Cylinder
Displacement: 99cc
Compression: 12.1
Bore x Stroke: 45 x 53
Induction: Case Reed
Fuel System: Keihin PWK24(mm)
Ignition: CDI w/ Digital Advance
Cooling System: Liquid
Clutch: Lightened Dry 3-Shoe
Transmission: CVT Constant Variable Transmission
Chain: 428 Final Drive
Starting: Kick

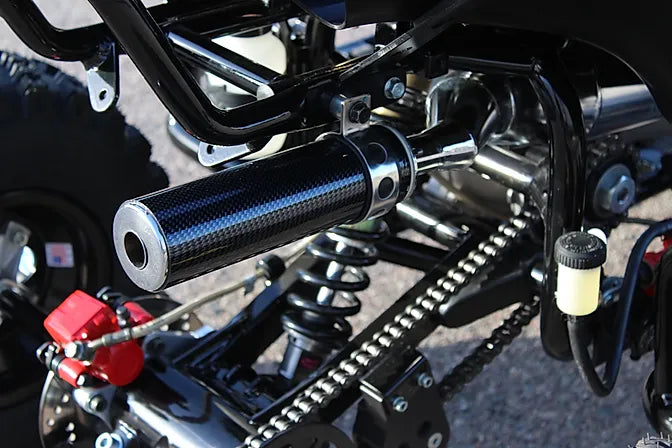

Exhaust: Tuned Pipe w/ Silencer
Lubrication: Pre-mix
Chassis, Suspension, Brakes, & Wheels
Chassis: Frame w/ Full Gusset Kit

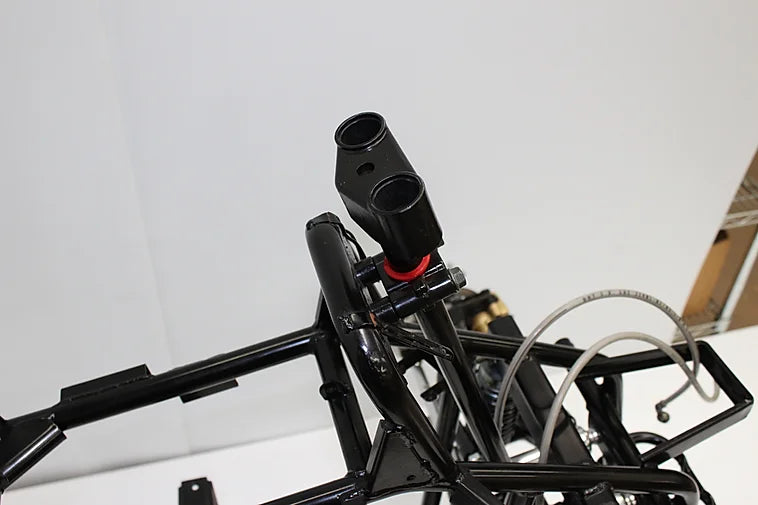

Steering: Anti-Vibe Stem w/ T2 Handlebars (1 1/8 IN)

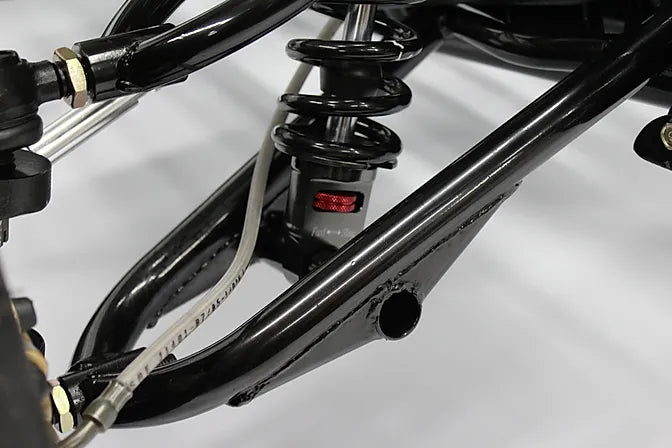

Front Suspension: Double Wishbone Dual A-Arm Long Travel
Front Wheel Travel: A-Arm (9.0 IN)

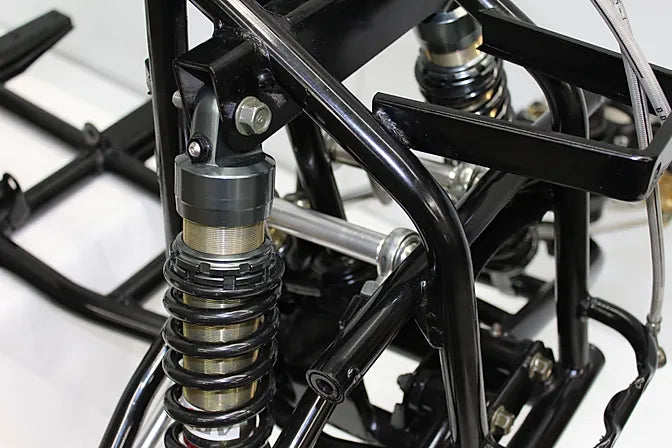

Front Shocks: 14.5 in Gas Single Rate Adjustable Compression & Rebound
Rear Suspension: Swingarm Long Travel
Rear Wheel Travel: Swingarm (10 IN)

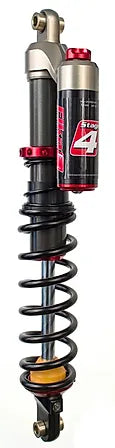

Rear Shock: 14.5 in Gas Single Rate Adjustable Compression & Rebound
Rear Axle: Fixed Width

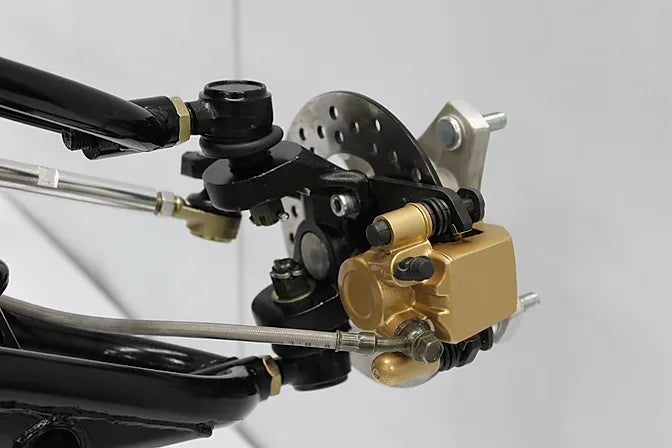

Front Brakes: Dual Hydraulic Disk

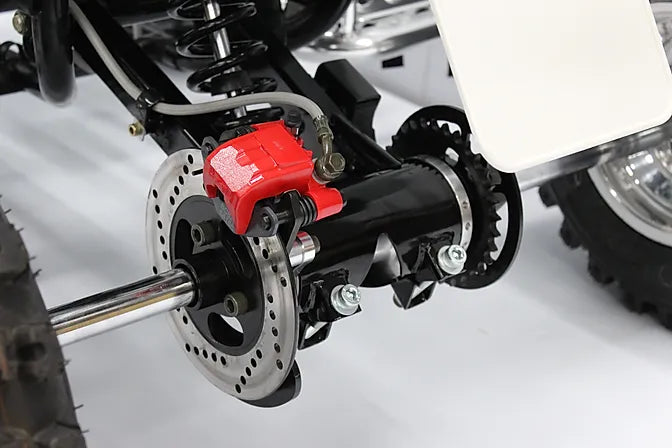

Rear Brakes: Hydraulic Disk

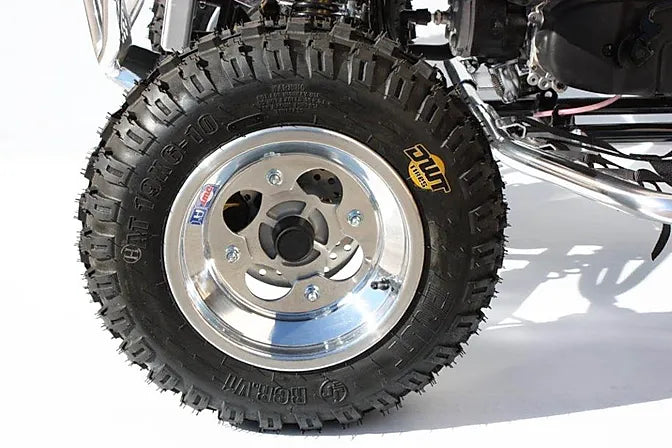

Tires / Front: 19x6-10 DWT
Tires / Rear: 18x6.5-8 DWT
Front Wheels: DWT Aluminum Rockout 10x5 (3+2)
Rear Wheels: DWT Aluminum 8x6 (2+4)
Dimensions
L x W x H: (64 IN) x (44 IN) x (40 IN)
Seat Height: (29 IN)
Wheel Base: (42 IN)
maximum Ground Clearance: (7 IN)
Wet Weight: 240 lb
Features
Ride Engineered Long Travel Dual A-Arms w/ Zero Bump Steer

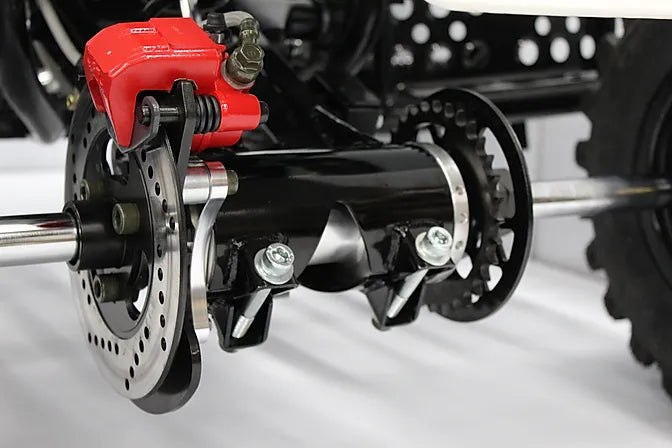

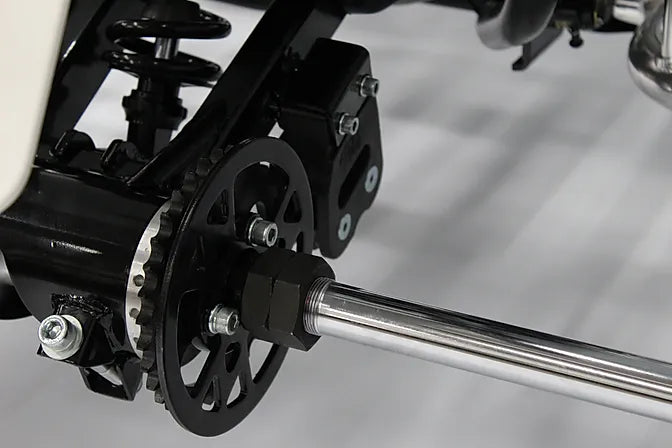

Roundhouse Billet Axle Carrier
Kill Tether

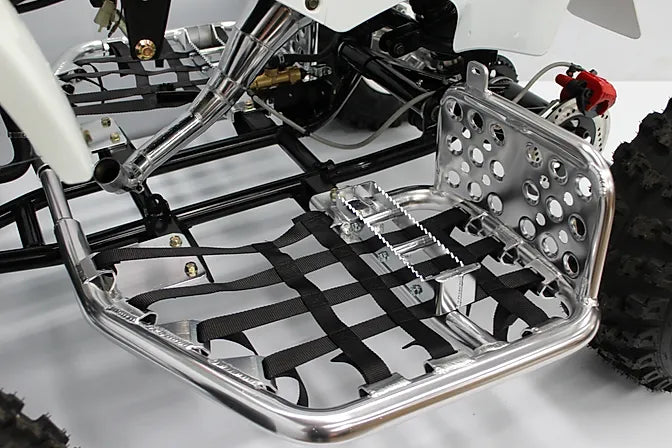

Aluminum Bumper / Grab Bar / Pro Peg Nerf Bars
Kill Tether Lanyard
Colors
Black
White
Red
Yellow
Options

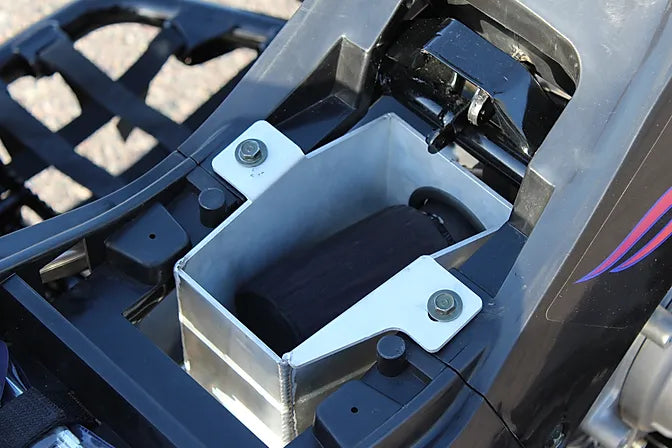

- Aluminum AIr Box w/ Reverse Intake Manifold Kit
- Aluminum XL Oversize Radiator Kit
- Aluminum XL Oversize Fuel Tank
- Aluminum Full Body Skid Plate
- DWT Black Rok-Out Wheels
- DWT Polished Wheels
- Flexx Handlebar Kit
